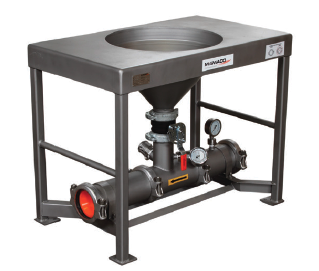

Hoppers

Features:
  •  The patented combination Minimum Pressure Drop (MPD) 175 nozzle and TriMix Diffuser (TMD) are made of durable polyurethane.
  • 2,790 in³ (45.7 L) hopper (equal to a 100-b [45.4-kg] sack of barite).
  • Standard 2-in. (DN50) bulk-liquids induction port.
  • 4-in. (DN100) groove connect provides compatibility with liquid tanks.
  • Consistent 26.8-in (681-mm) Hg vacuum.
  • Lowest comparable pressure loss at 48 psi (3.3 bar).
  • Lowest comparable energy requirement at 0.47 hp/gph (92 kW/m³/hr).
  • 35 MT/hr rate of solids induction.
  • Grooved pipe connections for quick installation and removal.
  • Consistent mixing performance between 30 and 60 psi (2 and 4 bar).
  • Durable, weather-resistant, stainless steel construction.
  • 600-GPM (136.2 m³/min) circulation can vacuum water through 33 ft (10 m) of 2-in. (DN50) hose and a vertical rise of 20 ft (6.1 m) at 80 GPM (302.8 L/min).
